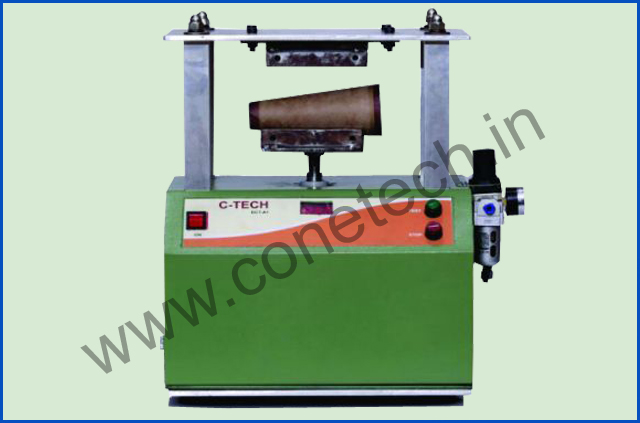

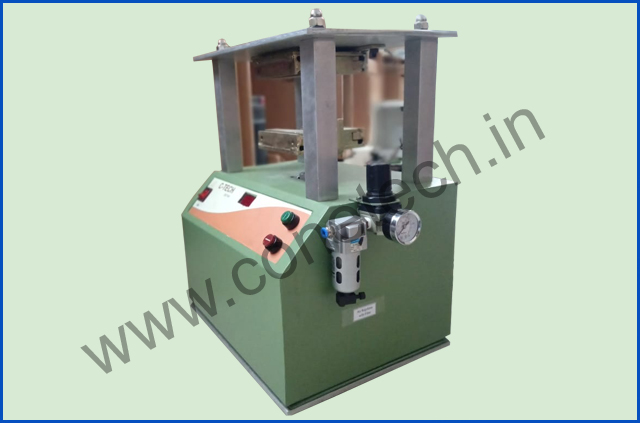

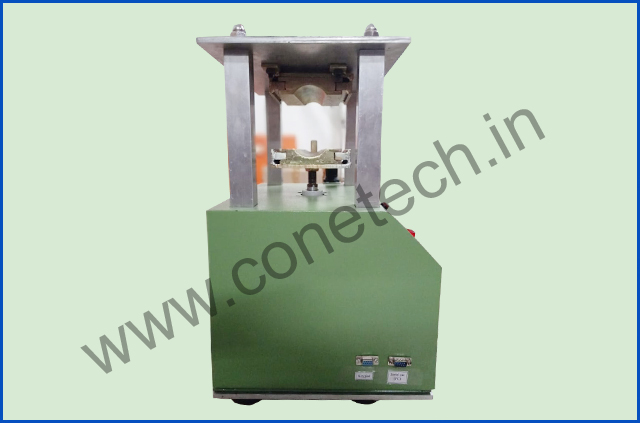

CRUSHING STRENGTH TESTING MACHINE

Generic Name : Cone / Cheese Collapsing Strength Tester
Product # : DCT – A1
Industry Usage : Spinning Paper Cone

FEATURES :

Measure the collapsing strength of cones and cheeses.
Table top model ; Working under pneumatic method.
Automatic operation with pneumatic control ensures accurate results.
Dual push button system ensures operator safety and ergonomic comfort.
Auto-stop and auto-return upon completion of test.
Stable electronics ; State-of-art microcomputer controlled soild state control circuity.
Specially made cone / cheese jaws suitable for standard cones / cheeses.
Unit of measurement : kgf and kg/cm
Direct result ( Force / Load) are read-out form LED display.

TECHNICAL DATA :

Measuring range : 25 to 300 kgf / 0.5 to 6 kg/cm 2
Accurac : 1 kgf / 0.01 kg/cm 2
Cone jaws size : Any of the two jaws (5 , 57 , 4 , 3 , 30 and cheeses)
Operating air pressure : 6.00 + or - g0.04 bar
Display : Seven segment numerical LED display
Required Air Pressure : 6.0 to 7.0 bar dries and filtered air
Power supply : Single phase 220vAC @ 50Hz; Consumption : 25 watts
Weight : 20 kg

SCOPE OF SUPPLY

1. Main Unit – 1 No.
2. Accessories : Cone jaws – 2 Nos. and Mains cord – 1 No.
3. Spares : Glass fuse (1 Amps) – 3 No’s.
Optional Supply : Cone jaws (As per customer requirements)

PRE – REQUISITES FOR INSTALLATION

Suitable working table, Properly earthed and stabilized single phase 220vAC @ 50 Hz ported at 5 Amps supply socket, Laboratory standard compressed air supply at 7.0 bar, Test cones and Suitably qualifies operator.
